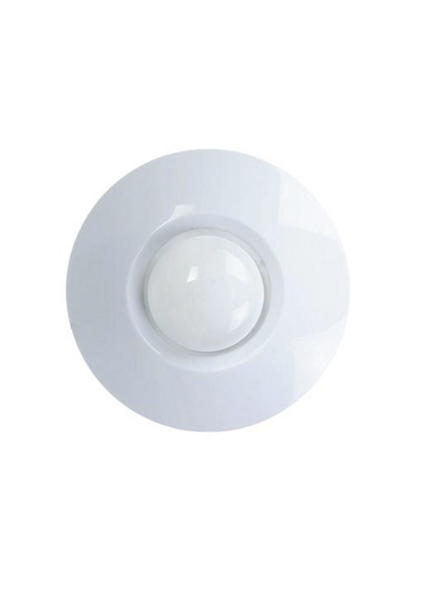

MC-720T PIR sensor
MC-720T This infrared motion sensor features a 90° detection angle and a maximum detection range of 12 meters, covering up to 144㎡. Powered by 10–24V with 12V DC output, it resists strong light above 6500LUX and is suitable for indoor use. Wall-mounted at 1.8–2.5m, it is ideal for automatic lighting and security sensing, stable, reliable and energy-saving.
- 0.00
- 0.00
Details
Product Features:
Full shielding technology resists various radiation interferences, with digital automatic pulse count adjustment;
Ultra-long lifespan and highly stable circuit;
LOADIF segmented FRESNEL lens, with surface high-density SMD technology;
High-sensitivity dual-element passive infrared, with digital signal processing via microprocessor;
Can prevent pets weighing less than 20KG;
Bi-type temperature compensation, automatic environment memory;
Curtain directional type and artificial intelligence type are optional.
Closed lens, fully sealed insect-proof optical path system;
Flame-retardant shell.
Technical Parameters:
Product model: MC-720T
Detection distance: radius 3.5m when installed at a height of 3m (25℃)
Input voltage: 9-16VDC
Current consumption: approximately 15mA@12VDC
Optical lens data sheet
Infrared area: 44+12+6+4
Maximum coverage area: approximately 63.5m
Turn-on indication: indicator light on for 10 seconds
Alarm and tamper alarm output: energized relay
Normally closed, greater than 100mA/30V, 30Q internal resistance. When alarming, the circuit is open for 2-3 seconds.
Alarm indication: LED indicator light on
Tamper interface: normally closed, 50mA impedance/30VDC
Installation:
Ceiling surface mounting, height 2.4-3.6 meters. Note: The base allows single-sided corner installation at a 45-degree angle to the wall.
Accessories: Bracket 1: Surface-mounted rotating bracket, adjustable downwards by 30 degrees and left/right by 45 degrees. Working environment:
Operating temperature: -10℃ - 50℃
Storage temperature: -20℃ - 60℃
Operating humidity: 5% - 95% (RH)
Anti-ambient light interference: greater than 6500LUX
Anti-electromagnetic interference: 10MHz - 1000MHz (30V/m)
Product size: Center86 * H25mm
